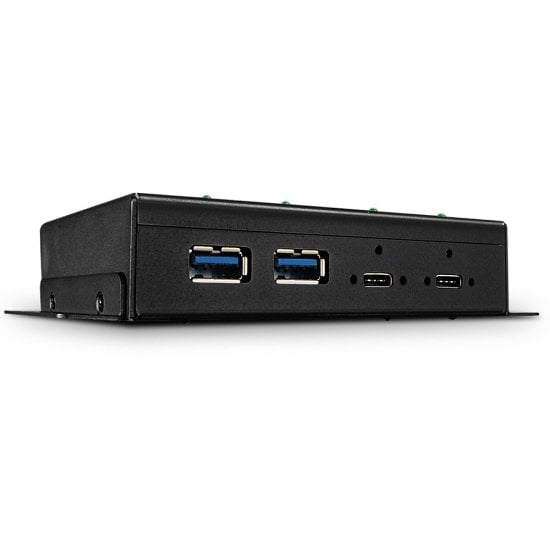

4 Port USB 3.2 Gen 2 Type C Metal Hub

No. 43094
£163.87 inc. VAT (FREE UK Delivery)
10+ in stock now
This product has been added to your basket...
  • Connects 2 Type A and 2 Type C USB 3.2 Gen 2 devices to a Type C port with SuperSpeed+ data rates up to 10Gbps
  • Hard-wearing USB Hub - Perfect for industrial applications
  • Robust metal housing with high EMC protection and integrated brackets for mounting
  • Powered by external power supply or terminal block
  • 2 year warranty

The Lindy 4 Port USB 3.2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps.

This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection.

With  robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.

Each port features individual short circuit protection - and all 4 USB ports support the Battery Charging specification 1.2 with a total charging power of 17.5 Watt for all 4 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted  electricity supplies.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications
  • USB Standard: USB 3.2 / 3.1 Gen 2
  • Supported Bandwidth: 10 Gbps
  • Chipset: VL820
  • Compatibility: USB Type C equipped computers, Thunderbolt 3
  • Power Delivery: -
  • Special Features: Supports Battery Charging 1.2; allows connection of USB Type C locking cables; Terminal Block

Connectors
  • Inputs: 1 x USB Type C (Female)
  • Outputs: 2 x USB Type A (Female), 2 x USB Type C (Female)
  • Power: 5.5/2.1mm DC socket

Physical Properties
  • Dimensions WxDxH: 135x60x24mm (5.31x2.36x0.94in)
  • (Fixed) Cable Length: -
  • Housing Material: Metal
  • Net Weight: 0.229kg (0.5lb)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)
  • Humidity: 0 - 95% RH (non-condensing)
  • Power Requirements: 5VDC 4A
  • Colour: Black

Miscellaneous
  • Packaging Type: Carton Box
  • Packaging Dimensions: 230x198x63mm (9.06x7.8x2.48in)
  • Gross Weight: 0.667kg (1.47lb)
  • Warranty (Years): 2
  • Certified: CE, UKCA, FCC, RoHS & REACH

Package Contents
  • 4 Port USB 3.2 Metal Hub
  • 0.6m USB 3.2 Gen 2 Dual Screw Type C Male to Type C Male Cable
  • Multi-Country Power Supply (EU, UK, US, AUS)
  • Lindy Manual

Purchasing Information
  • No.: 43094
  • EAN: 4002888430944
