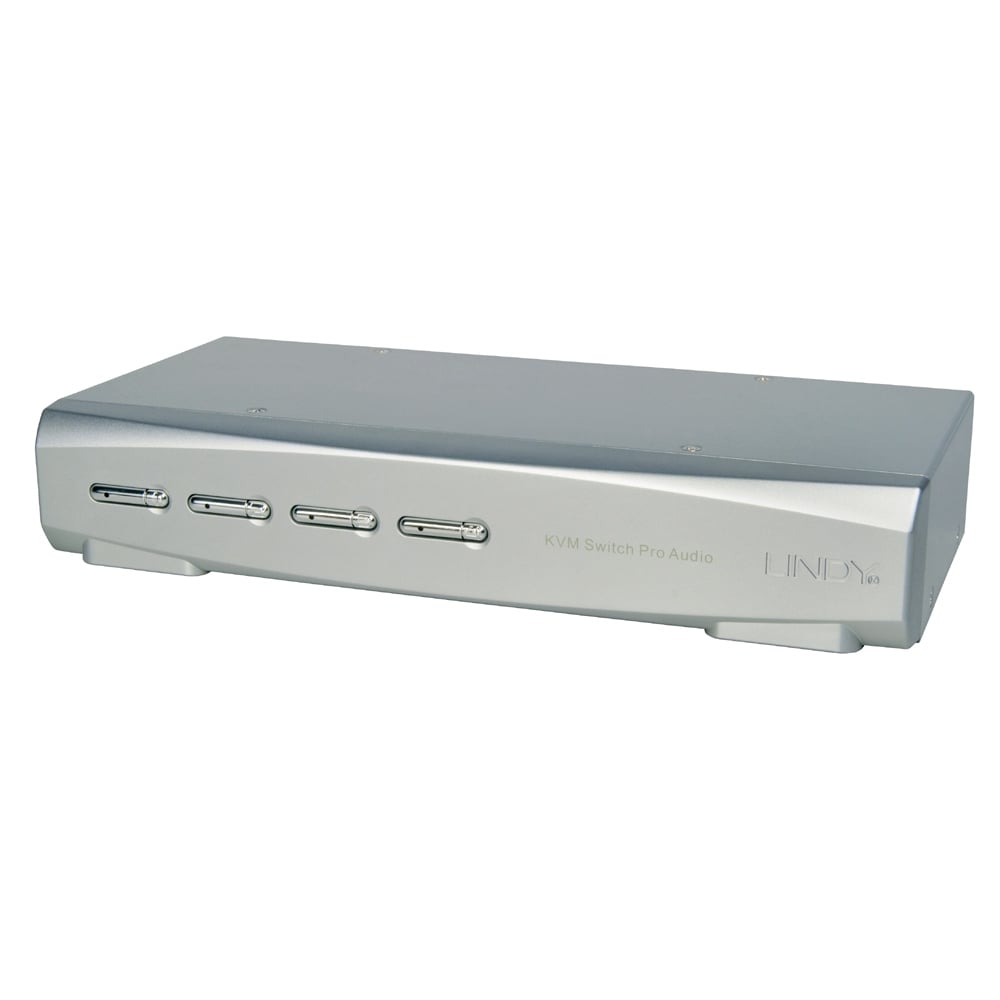

4 Port KVM Switch Pro USB 2.0, DisplayPort 1.2 with TTU
No. 39305- Provides KVM control of 4 DisplayPort equipped PCs and also allows connected USB devices to be shared
- Supports resolutions up to Ultra HD 4K 60Hz
- True Transparent USB (TTU) passes through Keyboard and Mouse drivers to enable all functions
- Integrated USB 2.0 hub and audio functions can be independently switched
- 2 Year Warranty
Control four DisplayPort 1.2 equipped computers using a single keyboard, monitor and mouse with independent control over audio and USB. An integrated USB 2.0 hub allows you to share USB devices such as pen drives, hard drives and printers, between the connected computers. The KVM Switch Pro use a robust metal housing which helps it remain securely seated on a desktop but also helps to avoid external interference when used in more demanding environments. Featuring DisplayPort female ports on its reverse side the switch can easily be used with both DisplayPort and Mini-DisplayPort equipped computers using standard DisplayPort or Mini DisplayPort to DisplayPort cables.
True Transparent USB Function
True Transparent USB switching is an advanced USB emulation technology. It allows the KVM to recognise specific Keyboard & Mouse models and emulate any of their associated special key and function information.
Unique Switching Options
A unique switching arrangement allows the built-in USB hub to be switched independently of the computers allowing you to print from one PC whilst playing games on another. Similarly, independent audio switching means you can listen to music from one computer while browsing the internet on the other
DisplayPort 1.2 Support
Supports DisplayPort monitors and computers with video resolutions of up to Ultra HD 4K 60Hz, making it perfect for MRI, CAD, desktop publishing and digital video applications.
Package Contents
- KVM Switch Pro, 4 Port
- 9V Multi-Country (UK, US, EU & AUS) Power Supply
- Lindy Manual
- Console Ports:
- Computer Ports:
- DisplayPort 1.2 Compatible
- USB 2.0 Hub
- 2 Port Hub
- Dimensions: 255x120x46mm
- Weight: 0.99kg
- 1 x DisplayPort
- 2 x USB Type A female for keyboard and mouse (KVM ports, not for other USB devices)
- 2 x USB 2.0 Type A female (hub)
- 2 x 3.5mm audio (1 x speaker & microphone)
- 4 x DisplayPort
- 4 x USB 2.0 B female
- 8 x 3.5mm audio (4 x speaker & microphone)
- Supports resolutions up to Ultra HD 4K 60Hz
- Supports digital audio over DisplayPort
- No support for MST functions
- Full support for USB 2.0 High-Speed 480Mbps
- Switchable with KVM switching or independently
